Cummins B6.7
Up to 325 hp · 800 lb-ft
Available on the 509 and 609 models, with higher ratings available for fire and rescue.
HV Series
A Truck That Works As Hard As You Do.
The new HV Series brings intelligent solutions, a commanding new sloped hood, and four models to fit the modern jobsite.
GVW
27,000 to 75,000 lb.
Models
HV 509, 609, 515, 615
Engines
Cummins B6.7, L9, or International S13
S13 output
370 to 515 hp, 1,250 to 1,850 lb-ft
Cabs
Day, Extended, Crew
Axles
4x2, 4x4, 6x4, 6x6, 8x6 tridem
Overview
Built For Jobs That Demand More
From soaring skyscrapers to highways that stretch for miles, big jobs demand equipment that is up to the task. That is exactly what the new International® HV™ Series is built for. Four models (509, 609, 515, and 615) cover everything from municipal dump trucks to tridem-axle vocational haulers, with GVW ratings from 27,000 to 75,000 lb.
The redesigned sloped hood and panoramic windshield give drivers a commanding view of the jobsite, even at 3 AM. Corrosion resistance is engineered in: galvanized outside panels, E-coat paint, InterCoat ChemGuard on floor and toe panels, and an available spray-on cab liner.
The 515 and 615 models carry the S13® Integrated Powertrain with the smooth-shifting T14 automated manual transmission, while the 509 and 609 offer proven Cummins® B6.7 and L9 power. Factory-installed lift axles and PTOs mean your upfit arrives ready to work, backed by factory warranty.
Financing at Artex
Put your next truck to work before you pay for it
Powertrain
Choose Your Power
Cummins L9
Up to 400 hp
More capability for the 509 and 609 models, with higher ratings available for fire and rescue.
International S13 Integrated
370 to 515 hp · 1,250 to 1,850 lb-ft
The integrated powertrain for the 515 and 615 models, paired with the smooth-shifting T14 automated manual.
- 515 and 615: International T14 14-speed automated manual with 2 crawler gears, plus Allison® 3000 to 4700 automatics.
- 509 and 609: Eaton manuals (6, 8LL, 9ALL, 13-speed) plus Allison 2500 to 4500 automatics.
- Factory single and dual transmission PTOs on the 515 and 615 use common North American interfaces and are warranted with the transmission.
Cab & Interior
Built Around The Driver
Day Cab, Extended Cab, Crew Cab; wheelbases 128" to 420". 109" BBC set-back or set-forward axle; 115" BBC set-back or set-forward axle.
- Classic
- Durable, hard-working interior for vocational fleets.
- Diamond
- Upgraded accents and finishes for a premium cab.

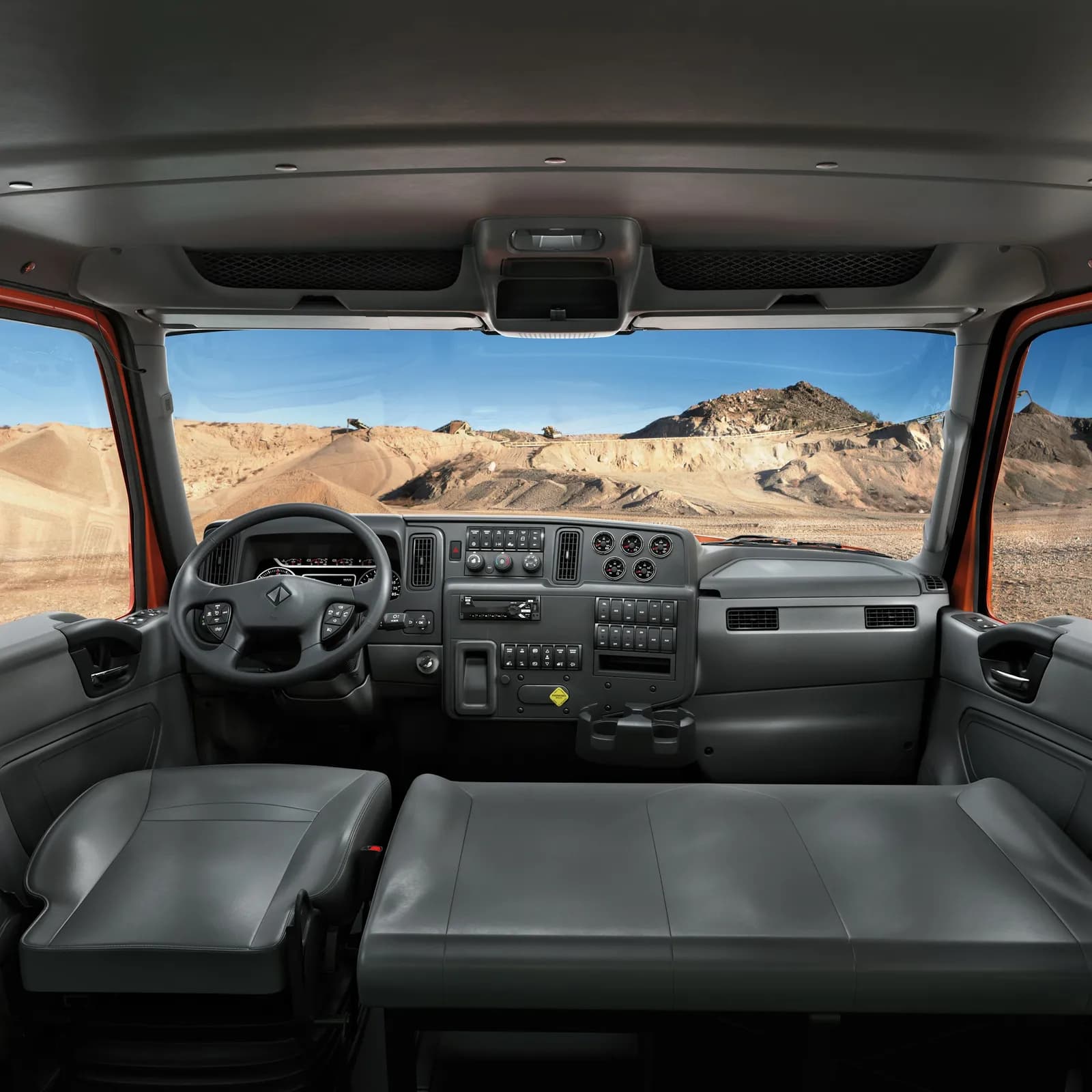

- Column-mounted stalk shifter with integrated engine braking
- Up to 30 programmable Diamond Logic switches and 48 available auxiliary gauges
- Premium gauge cluster with axle load, tire pressure, and safety alerts
Applications
Built For The Work
One platform, many bodies. Artex coordinates the factory spec and your body company so the truck arrives ready to work.
Construction
Extended service intervals, a stainless oil pan, galvanized rails, and digital fluid checks.

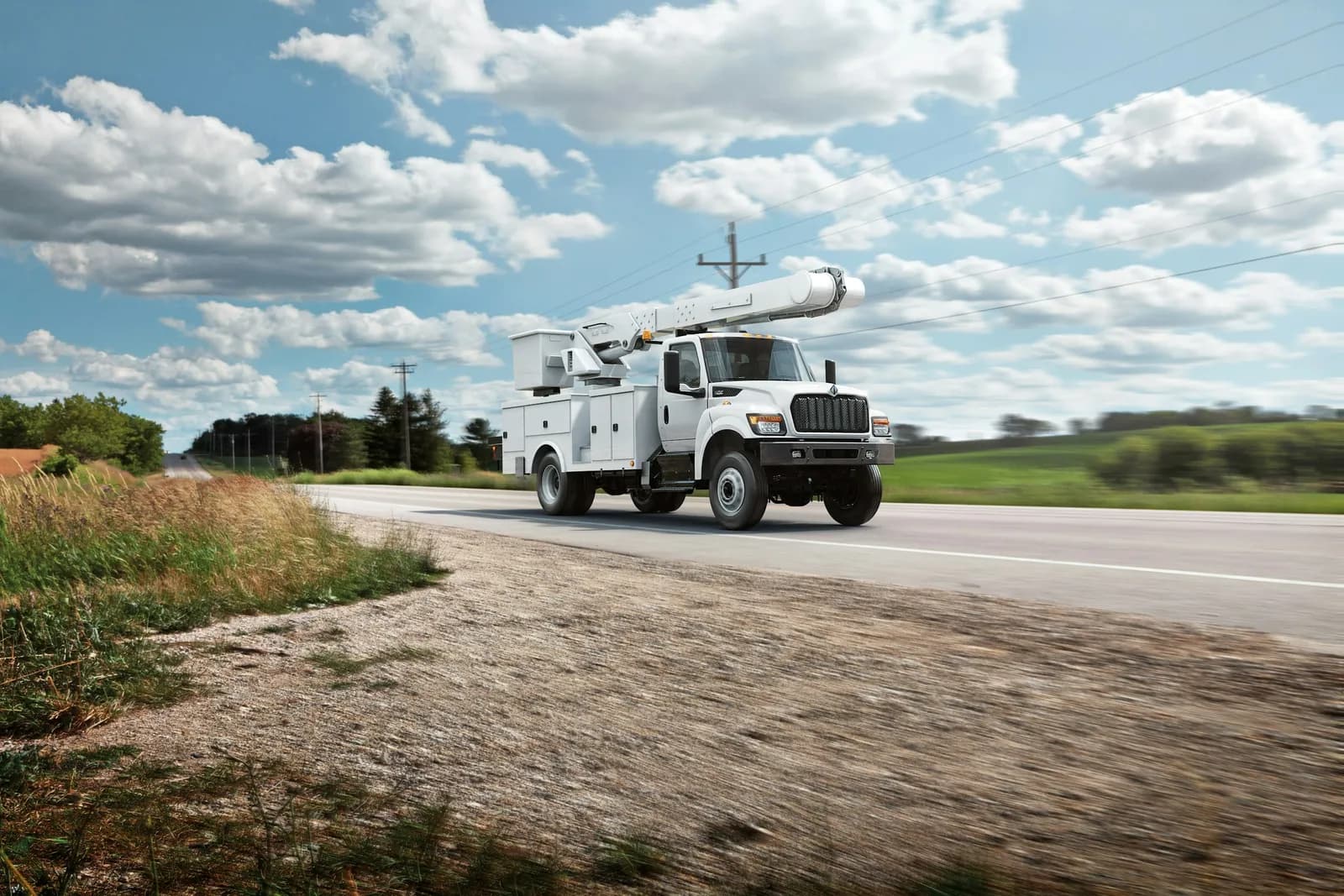

Utility
Diamond Logic streamlines body integration and protects crews.
Municipal
Corrosion resistance and safety features for year-round public service.

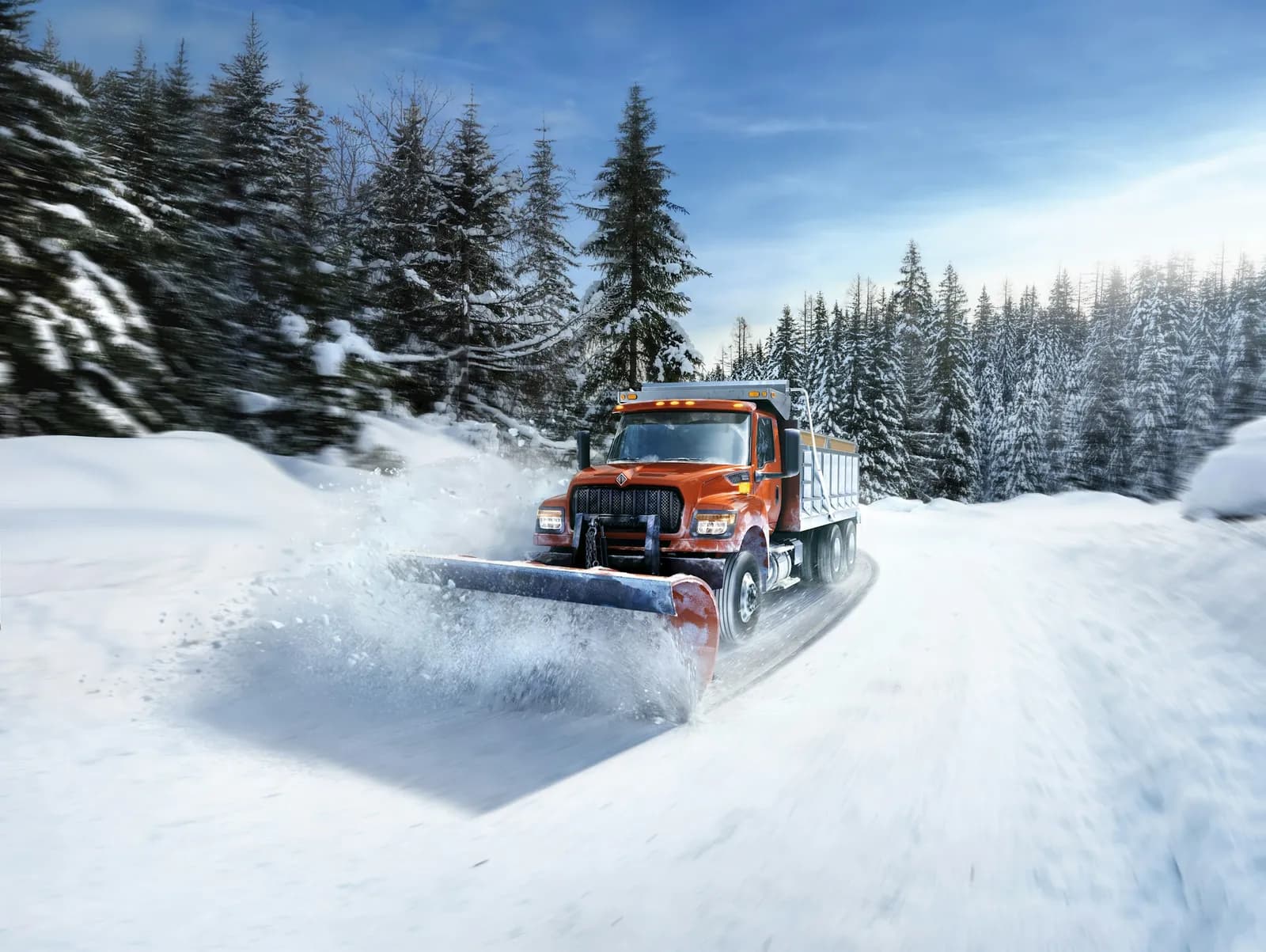

Snow removal
Heated LED headlamps melt away ice and snow so you can keep working.

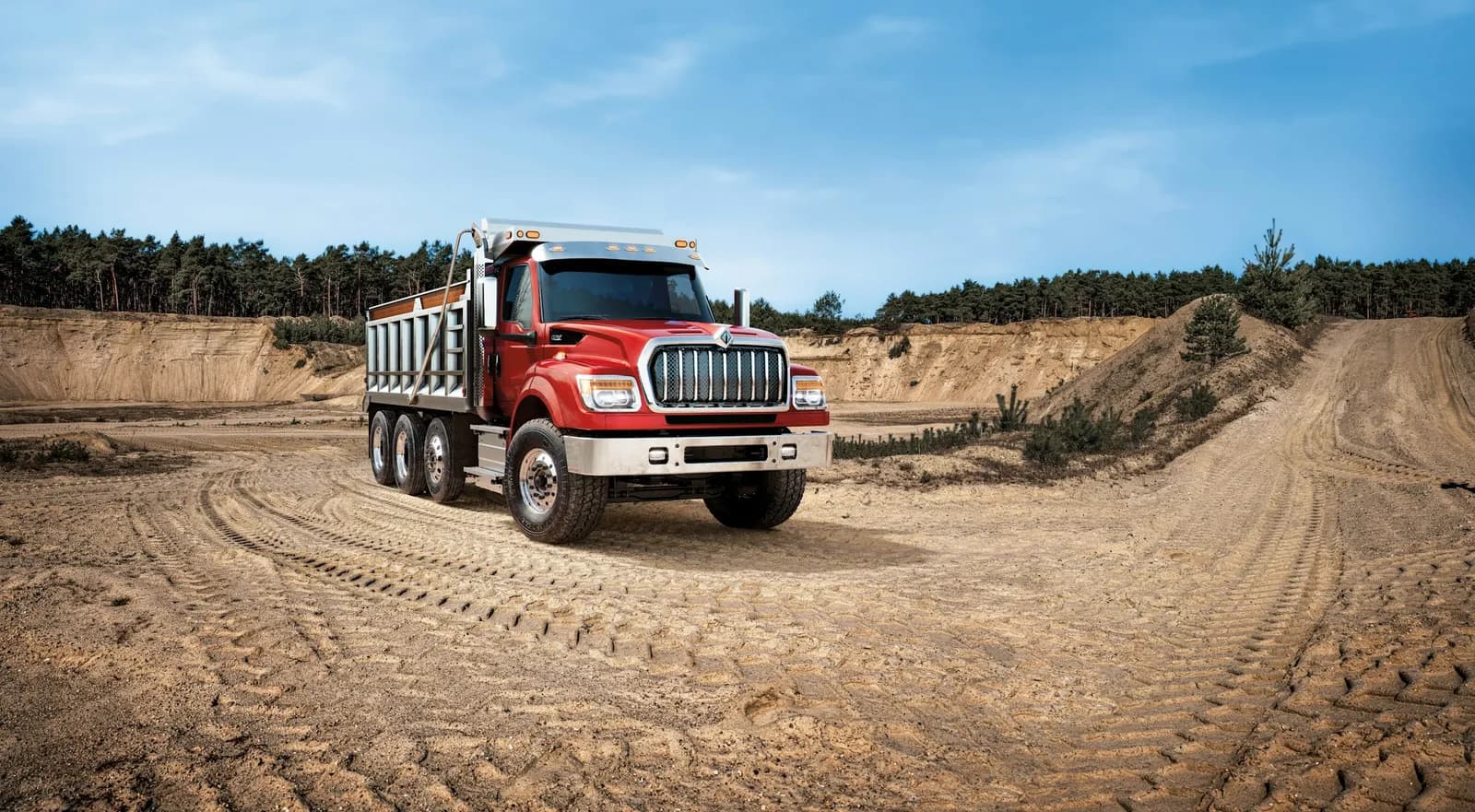

Dump and aggregate
Frame strength to 3.3M RBM single rail and lift axles for maximum payload.
Vocational bodies: Artex works with Ledwell of Texarkana on water, dump, rollback and HydraTilt upfits for the HV Series. Ledwell Upfits
Feature Highlights
What Sets The HV Apart
- Factory-installed lift axles
- Up to three lift axles rated 8,000 to 20,000 lb. in pusher and tag positions, with integrated Diamond Logic® controls.
- Frame strength
- 1.2M to 3.35M RBM single rail and 3.58M RBM double rail in heat-treated alloy steel from 80,000 to 125,000 PSI.
- Visibility
- A sloped hood and panoramic windshield give a commanding jobsite view, with available heated LED headlamps.
- Easy ingress and egress
- An available third step reduces step spacing and driver fatigue on high-cycle routes.
- Diamond Logic electrical system
- Programmable automation, equipment interlocks, and cleaner upfits for body builders.
Specifications
Detailed Specs
Published International® specification data for the HV Series. Your Artex sales rep will build the exact configuration around your application.
Axles
- Front axles: Dana Spicer non-driving 10,000 to 23,000 lb.; Meritor non-driving 10,000 to 22,000 lb., driving 10,000 to 20,000 lb.
- Rear axles: single Meritor 17,000 to 38,000 lb. (incl. double reduction), Dana Spicer 17,500 to 31,000 lb.
- Rear tandems: Meritor 40,000 to 52,000 lb., Dana Spicer 46,000 to 50,000 lb.
Suspensions and brakes
- Front suspensions: multileaf 14,000 to 20,000 lb.; parabolic taper leaf 10,000 to 23,000 lb.
- Rear suspensions: Chalmers 23,000 to 52,000 lb.; Hendrickson RT, HAS, HMX, and PRIMAAX (to 69,000 lb. tridem); Link 46,000 lb.; International 20,000 to 40,000 lb.
- Brakes: air disc with ABS, optional traction control and electronic stability program
Fuel, electrical, and steering
- Fuel: 40 to 200 gallons in single or dual aluminum tanks
- Electrical: 12V alternators 160 to 325 amp; batteries 1,320 to 4,600 CCA
- Steering: single gear power, dual gear on 16,000 lb. and larger front axles; halogen or LED headlights with optional heating element
Warranty
Covered From The Start
Vehicle and powertrainStandard warranties per model
Factory PTO (under 52K rear axle)36 months, unlimited miles
Factory PTO (52K rear axle and up)24 months
Factory PTO coverage matches the transmission warranty. Extended service contracts are available through Artex.
Backed By Artex
One Dealer For The Whole Life Of The Truck
Spec Your HV With The Artex Sales Team
Building out dump, utility, or municipal units? Artex will coordinate the factory spec, lift axles, PTOs, and your body company so the truck shows up ready to work.
