2027 MANAC 40 ft Tandem Axle
- Family-owned dealer on I-30 since 1991
- 21 International-certified service bays behind every sale
- Financing, leasing, and rental built for fleets
Every Spec, On The Sheet
Listed exactly as the trailer sits on our Texarkana lot. Need a spec you don't see, more photos, or a walkaround video? A rep can have it to you same-day.
Trailer
Dimensions
Build & Capacity
Description
SEVERAL UNITS AVAILABLE!!! CALL TODAY!!
TRAILER SPECIFICATIONS
Length 40'
Width 102"
King Pin 18"
Overall Height 10' (with Bang Boards)
Capacity 23 Cubic Yards (to top of bang boards)
Coupler Plate Oscillating Coupler Plate
Upper Hopper 10 & 12 Gauge Steel with Vertical Hopper Supports
Lower Hopper 10 Gauge Ends, 12 Gauge Sides, 54" x 108" Opening
Bottom Rail 4" x 6" x 3/16" High-Strength Tube
Top Rail 4" x 6" x 3/16" High-Strength Tube
Door 3/16" 80W Steel with Rubber Gate Seals & Slide Locks
Push Block Welded Push Block with Underride Protection
Front Structure High-Strength K-Bracing
Rear Structure High-Strength K-Bracing
Fenders Aluminum Front & Rear
Main Electrical System Grote Ultra Blue LED Sealed Lighting & Wiring Harness (DOT & Transport Canada Compliant)
Front Plug 7-Way (SAE J560) Easy-Access Wiring

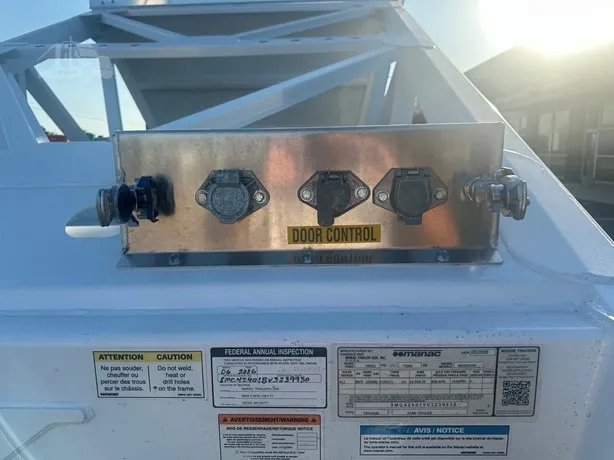

Additional Front Plug 6-Way Wired for Gate Control
Lighting LED Shock-Proof Lights with Polycarbonate Lenses
Landing Gear Drop Leg / Stiff 4" x 4" Galvanized Square Tube
Suspension Tandem 4-Spring Suspension
Brakes 16 1/2" Standard Brakes with Extended-Life Linings
Wheel Ends Oil or Grease Lubricated
Hubs & Drums 10-Stud Disc, Balanced Drums, Outboard Mount
Rims Hub-Piloted Steel (Aluminum Optional)
Tires 24.5" Radial Tires
ABS System WABCO 2S-1M
Mud Flaps Black Rubber with CPS Logo
Window Deflector Galvanized Steel
Air Controls Dual Air Controls - Suspension & Door Lock Operate Together Electrically or Individually Manually, Includes Quick Exhaust Valve
Gate Control Air Operated - Electric Cab Control & Manual Ground Control (Versa Valve)
Paint Shot Blasted, Epoxy Primer, Two Acrylic Polyurethane Top Coats
Safety Decals DOT & CMVSS Conspicuity Tape
Tarp Factory-Installed Options Available
Key Features
Several units available
40' x 102" lightweight bottom dump, 23 cu. yd. to top of bang boards
Tandem 4-spring suspension, 16.5" brakes with extended-life linings
Oscillating coupler plate, 18" king pin
Grote Ultra Blue LED sealed lighting, WABCO 2S-1M ABS
Air-operated gate: electric cab control and manual ground control (Versa Valve)
